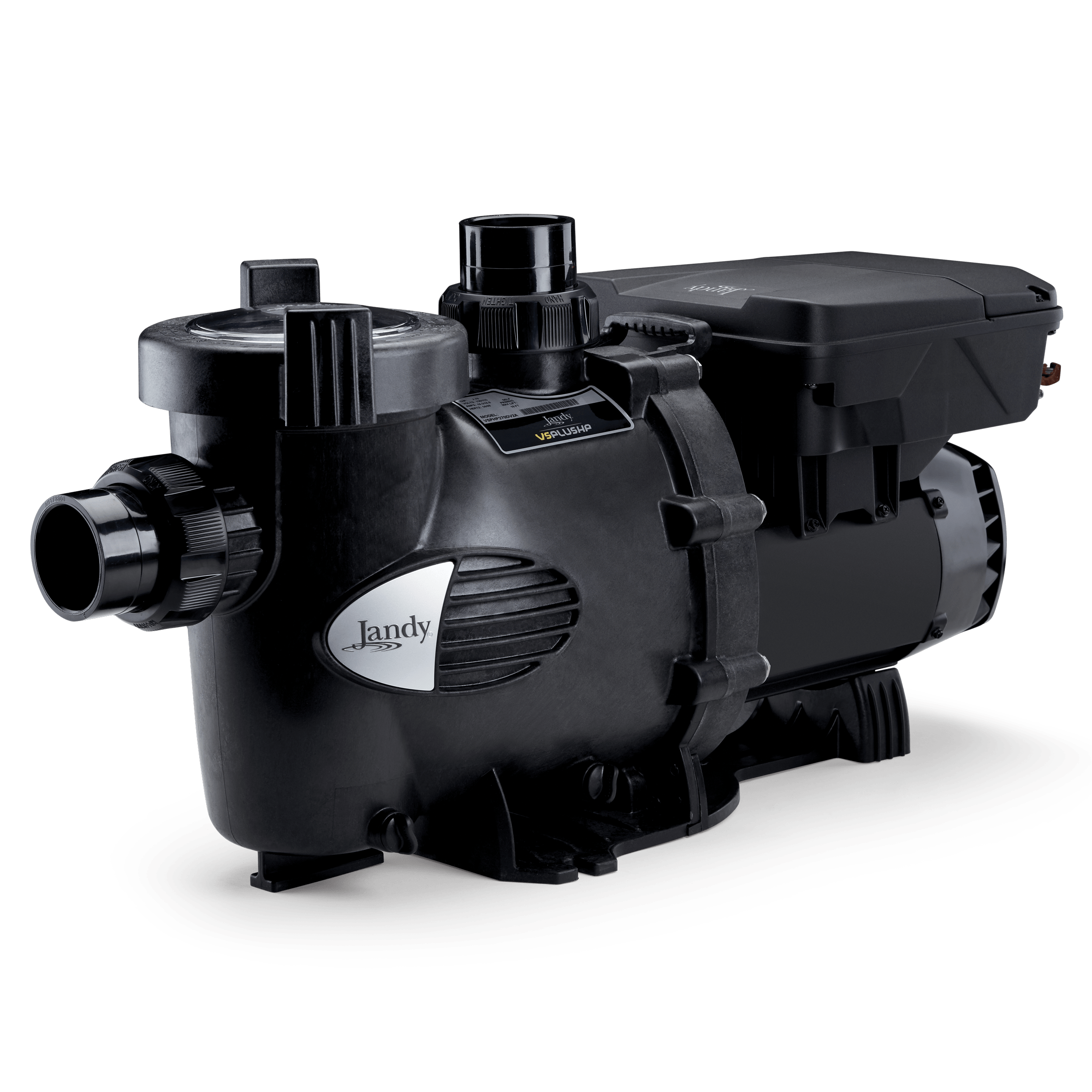

NEW! VS PlusHP 2.7 DV2A

Maximum Efficiency. Maximum Savings.

VS PlusHP is a high performance, energy-efficient pool pump, in a mid-sized body.

Find a Dealer

Description

Intelligent Pump Design

VS PlusHP is a high performance, energy-efficient pool pump, in a mid-sized body that reduces energy costs by over $1,100* versus single-speed pool pumps. Designed for feature rich pools, the VS PlusHP is engineered with an enhanced motor providing dual voltage capabilities and two auxiliary relays — making it easy to add automation for simple, convenient pool operation.

Features

  • Maximum Savings - Save over $1,100* per year in energy costs! The variable-speed motor allows for dramatic energy savings compared to high energy consuming single-speed pumps.
  • 115v/230v Dual Voltage - Auto-sensing dual voltage variable-speed motor automatically recognizes and adapts to 115- or 230-volt power supplies, providing installation flexibility and eliminating the need for expensive main power rewiring.
  • Maximum Convenience - Featuring two auxiliary relays which, when combined with iQPUMP01, enables instant automation for your pump — plus two additional pieces of equipment — eliminating the need for an extra time clock to control equipment such as a booster pump or salt chlorinator.
  • Maximum Efficiency - Small pump baskets fill faster — restricting flow and eroding performance. The VS PlusHP, with its oversized basket, delivers more consistent performance and better efficiency under real-world conditions — with a smaller motor.
  • Pool Control in the Palm of Your Hand - Connect to iAquaLink™, the highest-rated pool control app, for the ultimate in intelligent pool control from your mobile device. With iAquaLink you can manage all the elements of your pool or spa anytime, anywhere.
  • Quiet Operation - The advanced motor design of the VS PlusHP generates up to 70% less noise than single-speed pumps.**
  • Durable, Dependable Motor - Features a Zero Clearance Totally enclosed fan-cooled (TEFC) permanent magnet brushless DC motor that provides cooler operation and extended motor life.
  • Worry-Free Operation - Reliable battery backup ensures time and settings are stored during power outages.

*Based on a 28,000 gallon pool with 2 turnovers per day at an average power cost of 0.185/kWh; when tested in accordance with the applicable requirements of 10 CFR 429.
**Up to 70% quieter than traditional single-speed pumps. Results based on internal testing.

Technical Details

  • No Rewiring Necessary - Auto-sensing dual voltage motor automatically recognizes and adapts to 115- or 230-volt power supplies.
  • Add iQPUMP01 for Instant Automation - Two auxiliary relays allow the pump to control other equipment such as a salt chlorinator and booster pump without a separate timeclock.
  • Space Saving Design - Zero Clearance TEFC motor pulls in cooler air from the side of the motor instead of the back, allowing for compact installation against walls or other tight setups.
  • Choose Your Own Controller - Designed to work with the following Jandy control systems for complete programmability and customization (controller sold separately): Jandy AquaLink® Automation Systems, iQPUMP01 with iAquaLink™ App Control, JEP‑R Controller
  • Dry contact relay control
  • RS485 Quick Connect Port for faster installation and maintenance
  • 40% larger strainer basket than the leading competitor for greater pool owner convenience and improved efficiency when loaded with debris
  • 2” x 2.5” unions included for easy installation and maintenance with no hidden costs
  • Easy Controller Setup auto detects connection to an automation system or a traditional controller, eliminating the need to adjust settings manually
  • Ergonomic carry handle for easy installation
  • Tool free lid allows for quick and easy cleaning of the pump basket

Specifications

Model THP WEF Voltage Max Watts Amps Union Size Rec. Pipe Size Carton Weight Overall Length
VSPHP270DV2A 2.70 7.189 230
115
2,250W
1,840W
10.5
16.0
2” x 2 1/2” 2” - 3” 64 lbs 25/8"

Models

Models Description

Parts Breakout Diagram

VS PlusHP 2.7 DV2A Variable-Speed Pump Parts List

Launch our online catalog viewer to review breakout diagrams and part numbers.

Learn More

Resources

Jandy Variable Speed Pumps Installation and Operation Manual

Item #: H0661900
File Size: 18122698
Language: EN-CA

Download View Online
VS PlusHP 2.7 HP DV2A Brochure

Item #: SL3871
File Size: 3759848
Language: EN-CA

Download View Online
