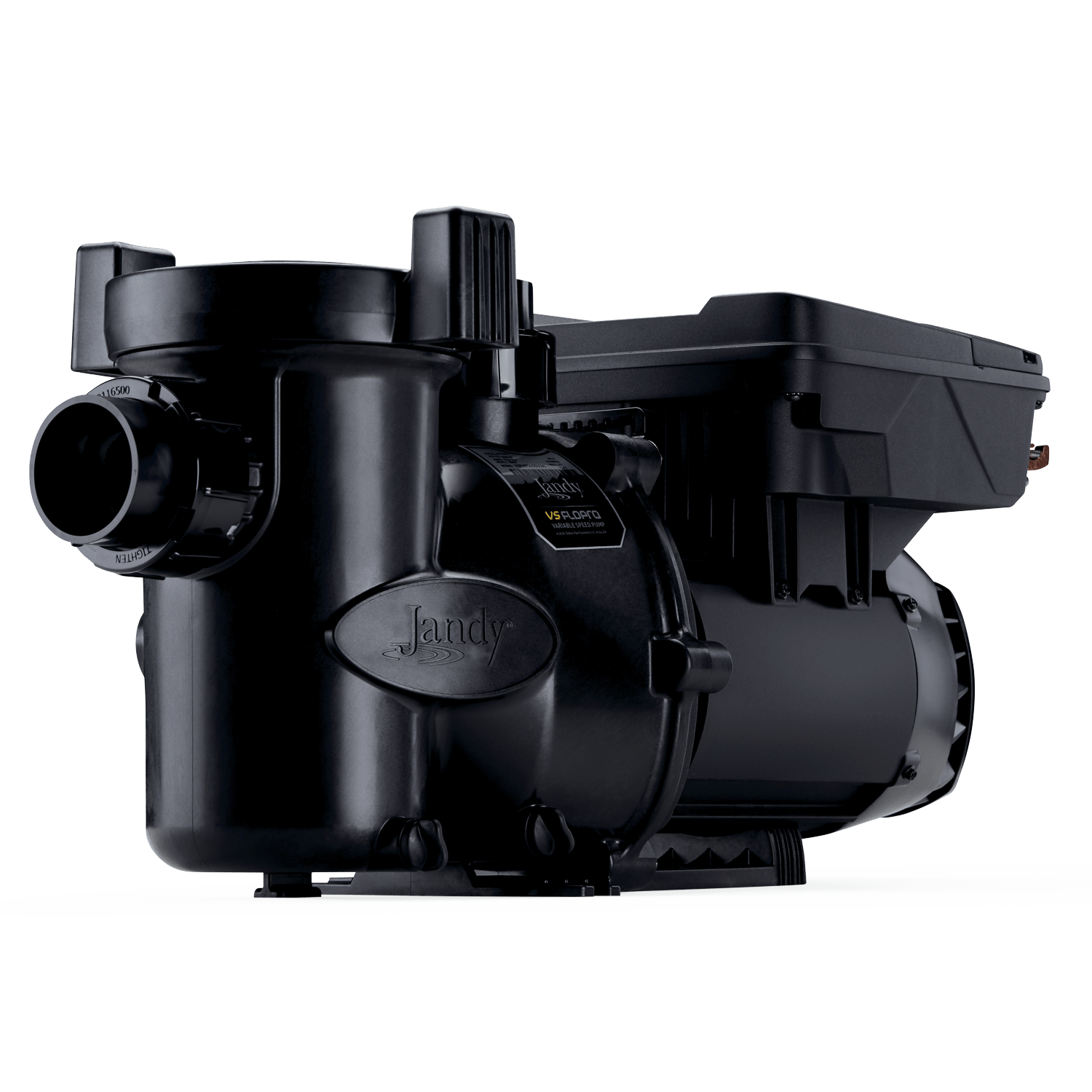

NEW! VS FloPro 1.85 HP

Dual Voltage. Identical Performance.

Offering the same performance at 115v or 230v, VS FloPro 1.85 is the ideal replacement for high energy consuming single-speed pumps up to 1.5 HP.

Find a Dealer

Description

Dual Voltage. Identical Performance.

Save on energy costs and space with the FloPro 1.85 HP variable-speed pump — the only 115v/230v dual voltage pump in its class that offers the same performance at either voltage. An ideal replacement for high energy consuming single-speed pumps up to 1.5 HP, the FloPro’s compact size allows for easy installation into smaller, tighter spaces. Featuring two auxiliary relay connections for instant automation, the VS FloPro 1.85 HP is compatible with iQPUMP01 and all AquaLink® automation systems for easy pump control and management.

Features

  • 115v/230v Dual Voltage Capability - The ability to operate with either 115v or 230v power sources while providing the same hydraulic performance at both voltages eliminates expensive main power rewiring without compromising performance.
  • Add iQPump01 for Instant Automation - Two auxiliary relays can be used to control other pool equipment, such as booster pumps and salt chlorinators, for easier installation and operation. No need for additional timeclocks!
  • Lower Electricity Costs - Save over $850 per year in energy costs!* The variable-speed motor allows for dramatic energy savings and quieter operation.
  • Choose Your Own Controller - Designed to work with the following Jandy control systems for complete programmability and customization (controller sold separately): Jandy AquaLink® Automation Systems, iQPUMP01 with iAquaLink™ App Control, JEP‑R Controller
  • Ultra High-Efficiency Motor - Fully programmable variable-speed pump, allowing you to program the pump for optimal performance and cost savings.
  • Engineered for Savings - Designed to reduce installation time and energy costs, it features on-board dry contacts which allows other equipment to control pump run time and speed.
  • Large Pump Basket - 20% larger strainer basket than the leading competitor for less maintenance and improved efficiency when loaded with debris.
  • Quiet Operation - Advanced motor design allows the VS FloPro 1.85 HP pump to run at energy-saving lower speeds for noticeably quieter operation.
  • Space-Saving Design - At just 24.5” in length, and with the zero clearance TEFC motor, it’s an ideal aftermarket solution for tight equipment pads and replacement of older single-speed pumps.
  • Easy Installation - Includes an innovative adjustable base for quick and easy replacement of existing pumps.

*Based on a 22,500 gallon pool with two turnovers per day at an energy cost of $0.195/kWh vs. comparable single speed pumps; when tested in accordance with the applicable requirements of 10 CFR 429.

Technical Details

  • Auto-sensing 115v/230v operation with identical performance at both voltages
  • Easy Controller Setup auto detects connection to an automation system or a traditional controller, eliminating the need to adjust settings manually
  • Dry contact relay control
  • Small footprint with a compact-sized wet end (24.5")
  • Two Auxiliary Relays to control additional pool equipment
  • Intelligent drive design auto detects connection to an automation system or controller, eliminating the need for manual dip switch settings.
  • Adjustable base for seamless direct replacement of a variety of other pumps in the aftermarket
  • 20% Larger Basket Compared to competitor's 3.95 THP Variable-Speed pump
  • 2"x2" unions included as well or utilize 2" internal threads
  • Tool-free drain plugs for easy winterization
  • Ergonomic easy-transport handle
  • Tool-free lid for easy debris removal
  • Zero Clearance Totally enclosed fan-cooled (TEFC) permanent magnet brushless DC motor for cool, quiet operation in tight spaces

Specifications

Model THP WEF Voltage Max Watts Amps Union Size Rec. Pipe Size Carton Weight Overall Length
VSFHP185DV2A 1.85 8.52 230V
115V
1,700W
1,800W
7.5
15.5
2” x 2” 1 1/2” - 2 1/2” 53 lbs 24 1/2"

Models

Models Description
VSFHP185DV2A VS FloPro 1.85 HP Variable-Speed Pump, 115/230 VAC, 2 Aux Relays, w/o Controller

Parts Breakout Diagram

VS FloPro 1.85 HP Variable-Speed Pump Parts List

Launch our online catalog viewer to review breakout diagrams and part numbers.

Learn More

Resources

Jandy Variable Speed Pumps Installation and Operation Manual

Item #: H0661900
File Size: 18122698
Language: EN-CA

Download View Online
VS FloPro 1.85 HP Brochure

Item #: SL5063
File Size: 4252641
Language: EN-CA

Download View Online
VS FloPro Pump Family Brochure

Item #: SL4711
File Size: 1812108
Language: EN-CA

Download View Online
